IntegrationofGoogleDiveiniOSapps

Google Drive Integration in iOS apps

Introduction

In present era of versatility , one cannot imagine an iOS app without the integration of third party applications such as Dropbox , Box and Google Drive for accessing their files, whatever may be the type of requirement. If no proper care is  taken for settings, integration for such apps could sometimes become very difficult. Google Drive is one tool that, could give birth to many problems if proper measures are not taken.

Here in this blog we are going to illustrate Google Drive integration in iOS apps.

Registering your application:

For registering your application , you will need a Google account. If you don’t have one , you can sign up for an account over here. After this you need to go to this link for registering your application.

Click on Create Project and start registering your application.

In the pop up opened, give a name for your project and accept ‘Terms of Service ‘of Google for integration. Clicking on ‘Create’ will show you the new application you just created. After that click on your application and from left side select the option “APIs & auth” . You will see a list of APIs for which Google provide support.

From those list of APIs go to the option ‘Drive API’ and turn it on. This would enable the drive API on your application. After that from left bar select the option ‘Credentials’.

You will see a screen like this :

Here, you need to create a client id and Public API access key.

Now click on ‘Create New Client ID’. Clicking on it will open a pop up showing the options for application type. Here you need to select ‘Installed application’. Under ‘installed application type’,  select the option ‘Other’.

Note : We do not select ‘iOS’ option as it is for a feature that doesn’t exist yet. So we are going to use a generic installed application option.

After that clicking on create button will give you the client id and client secret.

Create a Public Access key by providing the bundle identifiers needed for your application under ‘iOS key’ option.

Note : You can add more than one bundle identifier if you want. (since app development and app distribution requires two different bundle ID’s ).

As soon as you create the public key , your app becomes registered for using Google Drive API.

Installing Google Client Library:

For using the Google Drive API you need to first download the client library provided for Google integration. For downloading the client library open terminal, go to the project’s folder directory and paste the following:

svn checkout http://google-api-objectivec-client.googlecode.com/svn/trunk/google-api-objectivec-client-read-only

Configure Xcode project :

For configuring your Xcode project , you need to follow these steps:

  1. Open your project in finder . Open Google Client Library root folder and from there select Source . After opening Source you will find a project ‘GTL.xcodeproject’ like shown in the following image. You need to drag this project into your Project.xcodeproject.


    You will see a workspace is created in your project.

  2. Now, go to  ‘Build Phases’  of your project and add library ‘libGTLTouchStaticLib.a’. Also add Security.framework and SystemConfiguration.framework.

  3. In ‘Build Settings’ , add  “-ObjC -all_load” in ‘other linker flags’.

  4. Go to ‘User header Search Paths’ and under that add directory path for ‘Source’ folder of Google Client Library and set the path from Non-Recursive to Recursive.

  5. Select , GTL project . Under GTL project, go to Build Settings and set ‘skip install’ to YES for GTL Framework and GTL project.

    Note : You can select GTL Framework and GTL project from the ovally marked location and set skip install to YES for both.

  6. Drag ‘GTMOAuth2ViewTouch.xib’ from Google Client Library’s Source/OAuth2/Touch folder into the app’s project Supporting Files folder.
  7. Add the Google Drive service by adding ‘GTLDrive.h’ and ‘GTLDrive_Sources.m’ from the Source/Services/Drive/Generated folder directly to the application project.

Application authorization and making API calls:

Add the following lines of code to your ’ViewController.h’ file.

#import "GTMOAuth2ViewControllerTouch.h"
#import "GTLDrive.h"

@property (nonatomic, retain) GTLServiceDrive *driveService;

In Your ViewController.m file add following lines of code:

static NSString *const kKeychainItemName = @"Your Project name Registered With Google ";
static NSString *const kClientID = @"Your Client ID";
static NSString *const kClientSecret = @"Your client secret";

Now add the following lines of code in same file.m . These codes will ignite the authorization process for your application by Google.

-(void)showGoogleDriveForChoosingFile
{
    [self setValuesForGoogleDriveAccess];

    if (![self isAuthorized])
    {
        isAuthorized=NO;
        GTMOAuth2ViewControllerTouch *authController=  [self createAuthController];
    }
    else
    {
        isAuthorized=YES;
    }
}
//-------------------------------------------------------------------------------------

-(void)setValuesForGoogleDriveAccess
{
    // Initialize the drive service & load existing credentials from the keychain if available
    self.driveService = [[GTLServiceDrive alloc] init];

    self.driveService.authorizer = [GTMOAuth2ViewControllerTouch authForGoogleFromKeychainForName:kKeychainItemName
                                                                                         clientID:kClientID
                                                                                     clientSecret:kClientSecret];

}

//-------------------------------------------------------------------------------------

-(BOOL)isAuthorized
{
    return [((GTMOAuth2Authentication *)self.driveService.authorizer) canAuthorize];
}

//-------------------------------------------------------------------------------------

-(GTMOAuth2ViewControllerTouch *)createAuthController
{

    GTMOAuth2ViewControllerTouch *authController;
    authController = [[GTMOAuth2ViewControllerTouch alloc] initWithScope:kGTLAuthScopeDrive
                                                                clientID:kClientID
                                                            clientSecret:kClientSecret
                                                        keychainItemName:kKeychainItemName
                                                                delegate:self
                                                        finishedSelector:@selector(viewController:finishedWithAuth:error:)];

    [self presentViewController:authController animated:YES completion:Nil];
    return authController;
}
//-------------------------------------------------------------------------------------

-(void)viewController:(GTMOAuth2ViewControllerTouch *)viewController
      finishedWithAuth:(GTMOAuth2Authentication *)authResult
                 error:(NSError *)error
{
    if (error != nil)
    {
        [self dismissViewControllerAnimated:YES completion:Nil];

        isAuthorized=NO;
        UIAlertView *alertForNoAuthentication=[[UIAlertView alloc]initWithTitle:@"Authentication Error" message:error.localizedDescription delegate:self cancelButtonTitle:@"Ok" otherButtonTitles:Nil, nil];
        [alertForNoAuthentication show];
        self.driveService.authorizer = nil;
    }
    else
    {
        [self dismissViewControllerAnimated:YES completion:Nil];

        UIAlertView *alertForNoAuthentication=[[UIAlertView alloc]initWithTitle:@"Authentication successful" message:@"authortiozation done" delegate:self cancelButtonTitle:@"Ok" otherButtonTitles:Nil, nil];
        [alertForNoAuthentication show];

        isAuthorized=YES;

        self.driveService.authorizer = authResult;
    }
}

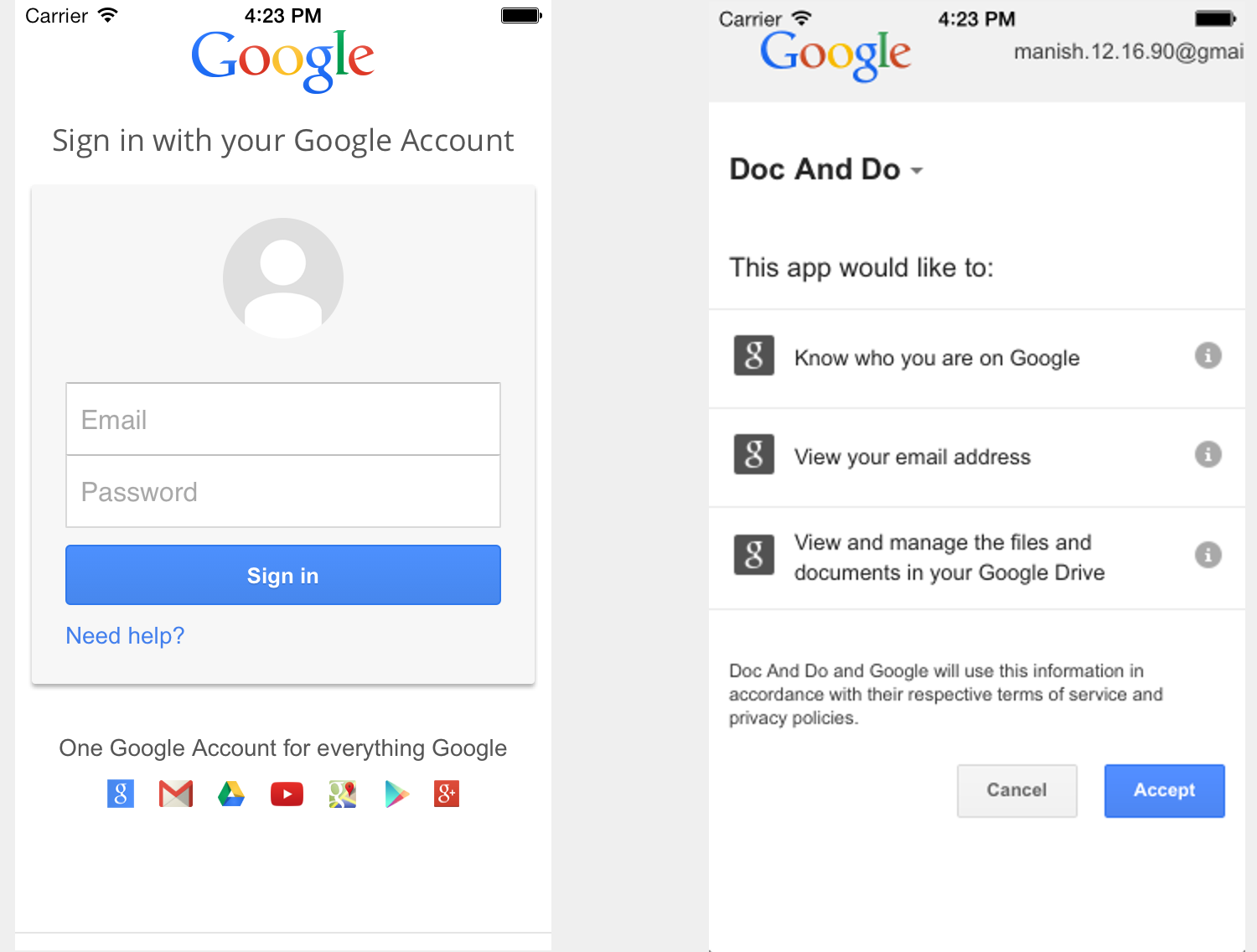

As soon as you run your app and fire up Google integration you will see the following screen on your device screen followed by another screen after entering the proper credentials.

Once you click on ‘Accept’  your authorization is complete and you can access files from Google Drive account within your app.

Add the following lines to the file where you want to access Google files. These lines of codes will show you the files for your root directory.

-(void)loadDriveFiles
{

    fileFetchStatusFailure = NO;

    //for more info about fetching the files check this link
    GTLQueryDrive *query = [GTLQueryDrive queryForFilesList];
    query.q = [NSString stringWithFormat:@"'%@' IN parents", @"root"];

    // queryTicket can be used to track the status of the request.
    [self.driveService executeQuery:query
                  completionHandler:^(GTLServiceTicket *ticket,
                                      GTLDriveFileList *files, NSError *error)
     {
         NSLog(@"error: %@", error.localizedDescription);
         GTLBatchQuery *batchQuery = [GTLBatchQuery batchQuery];

         //incase there is no files under this folder then we can avoid the fetching process

         if(error)
         {
             UIAlertView *alertForError=[[UIAlertView alloc]initWithTitle:@"ERROR" message:error.localizedDescription delegate:self cancelButtonTitle:@"Ok" otherButtonTitles:Nil, nil];

             [alertForError show];

         }
         else
         {
             //an array to store files : driveFiles
             driveFiles = [[NSMutableArray alloc] init];
             [driveFiles addObjectsFromArray:files.items];

             if (driveFiles.count == 0)
             {
                 UIAlertView *noDataAlert=[[UIAlertView alloc]initWithTitle:@"NO FILE" message:@"No Files in google drive" delegate:self cancelButtonTitle:@"Ok" otherButtonTitles:Nil, nil];

                 [noDataAlert show];

             }
             else
             {
                 for (GTLDriveFile *driveFile in driveFiles)
                 {
                     //if you are showing files in a tableview
                     [tableViewForFiles reloadData];
                 }
             }
         }

         //finally execute the batch query. Since the file reterive process is much faster because it will get all file metadata info at once
         [self.driveService executeQuery:batchQuery
                       completionHandler:^(GTLServiceTicket *ticket,
                                           GTLDriveFile *file,
                                           NSError *error) {
                       }];

     }];
}

Below mentioned codes are another function that gets files from a particular folder. The only thing required for this is the folderID whose files have to be fetched.

void)printFilesInFolderWithService:(GTLServiceDrive *)service
                            folderId:(NSString *)folderId andName:(NSString *)name{

    // The service can be set to automatically fetch all pages of the result. More
    // information can be found on https://code.google.com/p/google-api-objectivec-client/wiki/Introduction#Result_Pages.
    service.shouldFetchNextPages = YES;

    [driveFiles removeAllObjects];

    GTLQueryDrive *query =
    [GTLQueryDrive queryForChildrenListWithFolderId:folderId];
    // queryTicket can be used to track the status of the request.
    GTLServiceTicket *queryTicket =
    [service executeQuery:query
        completionHandler:^(GTLServiceTicket *ticket,
                            GTLDriveChildList *children, NSError *error) {
            if (error == nil) {
                for (GTLDriveChildReference *child in children) {
                    NSLog(@"File Id: %@", child.identifier);

                    GTLQuery *query = [GTLQueryDrive queryForFilesGetWithFileId:child.identifier];

                    // queryTicket can be used to track the status of the request.
                    [self.driveService executeQuery:query
                                  completionHandler:^(GTLServiceTicket *ticket,
                                                      GTLDriveFile *file,
                                                      NSError *error) {

                                      NSLog(@"nfile name = %@", file.originalFilename);
                                      [driveFiles addObject:file];

                                      if (children.items.count==driveFiles.count)
                                      {
                                          [tableViewForFiles reloadData];
                                      }
                                  }];
                }
            } else {
                NSLog(@"An error occurred: %@", error);
            }
        }];
}



You can get the link of a file from the properties ‘embedLink’ and ‘webContentLink’ of ‘GTLDriveFile’. After that you can do anything you want from those files .

Maximum problems occur while archiving the app and instead of giving iOS App Archive it gives Xcode Generic Archive. But with above set of instructions, you will never get any problem while archiving also.

You can find sample code for the Google Drive integration in GitHub.

This is it. If you face any difficulty regarding the integration at any point, feel free to comment . Any suggestions for improvements will be appreciated. Hope it helps.

Where to go from here

Now you have integrated Google Drive in your project. There are some other cloud services offering storage and they are quite popular too. Read Integration of Dropbox in iOS applications and Integration of Box in iOS apps.

Manish Kumar

Manish Kumar is an iOS developer at Kolkata, who enjoys building innovative applications. Besides he also loves playing football and listening to songs. He loves challenges and sharing his work in open source community. Lots of iOS objective C development work is going on in Innofied. You can reach us at contact@innofied.com
